Orion Fans

Product Highlight

DC Fans

OD8025-12HBXE

• Features: High-performance 80x80x25mm fan, 12VDC, 85.8 CFM airflow, 60.1 dBA noise level, ball bearing for long life, lead wire termination.
• Description: Part of the XE series designed for high airflow in a compact frame. Ideal for applications where space is limited but strong cooling is needed, like electronics enclosures or small appliances.



OD4010-24HB

• Features: Compact 40x40x10mm fan, 24VDC, 7 CFM airflow, 6000 RPM speed, ball bearing, lead wire termination, UL recognized.
• Description: A small but powerful fan suitable for tight spaces where efficient cooling is critical. Often used in telecommunications equipment, electronics, and medical devices.



OD3010-05HB

• Features: Miniature 30x30x10mm fan, 5VDC, 4.6 CFM airflow, ball bearing, lead wire termination, IP55 rated for dust and water resistance.
• Description: An ultra-compact fan with low power consumption, making it ideal for portable electronics, battery-powered devices, and other applications where space and energy efficiency are paramount. Its IP55 rating adds protection in harsh environments.

CENTRIFUGAL FANS / IMPELLERS

OAB13372

• AC Motorized Impeller: Utilizes an AC motor for reliable performance and straightforward integration.
• High Airflow: Delivers impressive airflow of up to 188 CFM (cubic feet per minute), ensuring effective cooling for various applications.
• Compact Size: Measures 133mm x 133mm x 72mm, making it suitable for installations with limited space.
• Thermal Overload Protector (TOP): Protects the motor from overheating and potential damage.
• IP55 Rated: Offers protection against dust and water ingress, enabling use in diverse environments.
• Dual Ball Bearing System: Ensures smooth operation and enhanced durability.
• Wide Operating Temperature Range: Functions reliably in temperatures from -10°C to +60°C.
• Long Life Expectancy: Designed for an operational lifespan of up to 50,000 hours under normal conditions.
• UL, cUL, TUV, VDE, and CE certifications: Meets various safety and quality standards.



OAB13391

• AC Blower with Ball Bearing: Utilizes a ball bearing system for smooth operation and extended lifespan.
• Backwards Curved Impeller: This design helps generate high airflow with reduced noise levels.
• IP55 Rated: Offers protection against dust and water ingress, making it suitable for various environments.
• Thermal Overload Protector (TOP): Safeguards the motor from overheating and potential damage.
• Wide Operating Temperature Range: Can operate reliably in temperatures from -40°C to +60°C.
• Long Life Expectancy: Rated for up to 40,000 hours of operation under normal conditions.
• Dual Ball Bearing System: Ensures smooth operation and increased durability.
• Die-cast Aluminum Frame and UL94V-0 Thermoplastic Impeller: Provides a robust and lightweight construction.



OAB190

• High Airflow: Delivers up to 370 CFM (cubic feet per minute), ensuring effective cooling for various applications.
• AC Motorized Impeller: Utilizes an AC motor for reliable performance and easy integration.
• Backward Curved Impeller: This design promotes high airflow while minimizing noise levels.
• Dual Ball Bearing System: Ensures smooth operation and extended lifespan.
• IP55 Rated: Offers protection against dust and water ingress, enabling use in diverse environments.
• Thermal Overload Protector (TOP): Safeguards the motor from overheating and potential damage.
• Die-cast Aluminum Frame and UL94V-0 Thermoplastic Impeller: Provides a robust and lightweight construction.
• Wide Operating Temperature Range: Functions reliably in temperatures from -10°C to +60°C.
• Long Life Expectancy: Designed for an operational lifespan of up to 50,000 hours under normal conditions.

FAN TRAYS

OAT230 Series

• High Airflow: Delivers up to 400 CFM (cubic feet per minute) of airflow, ensuring efficient cooling for demanding applications.
• Compact Design: 3RU (rack units) height saves valuable rack space.
• Dual Fan Configuration: Two powerful fans provide redundancy and increased airflow.
• Horizontal Airflow: Designed for horizontal mounting in server racks and enclosures.
• Easy Installation: Front panel access simplifies fan maintenance and replacement.
• Multiple Voltage Options: Available in 115VAC or 230VAC models for global compatibility.
• Durable Construction: Built with high-quality materials for long-lasting performance.
• Versatile Applications: Ideal for cooling servers, network equipment, and other electronics in data centers and industrial environments.



OAT600ST SERIES

• High Airflow: Delivers a combined airflow of 620 CFM (cubic feet per minute) with its six high-performance fans.
• Compact Design: Features a shortened 14" rail, making it ideal for applications with limited space.
• Vertical Airflow: Designed for vertical mounting in server racks and enclosures, promoting efficient cooling.
• Multiple Voltage Options: Available in 115VAC or 230VAC models to meet various power requirements.
• Easy Installation and Maintenance: Front panel access simplifies fan maintenance and replacement.
• Reliable Operation: Includes a lighted rocker switch and a resettable circuit breaker for safe and convenient operation.
• Durable Construction: Built with high-quality materials to ensure long-lasting performance in demanding environments.



OET305-A SERIES

• EC Fan Tray Expansion Module: Designed to add three additional fans to the OET305 and OET605 trays.
• Enhanced Airflow: Provides 401 CFM (cubic feet per minute) of combined airflow with its three fans.
• Wide Voltage Range: Operates on 80~265VAC, offering flexibility for various power environments.
• Compact Design: Measures 419.1 x 133.35 x 44.5mm, making it space-efficient.
• Easy Installation: Seamlessly integrates with compatible fan trays for convenient expansion.
• Efficient Cooling: Equipped with dual ball bearing fans for reliable and long-lasting performance.
• Reduced Noise: Operates at 53 dBA, ensuring quiet operation.



ODT900 SERIES

• High Airflow: Delivers up to 900 CFM (cubic feet per minute) of airflow for efficient cooling of high-density equipment.
• Dual Fan Configuration: Two powerful fans provide redundancy and increased airflow.
• Front Door Mounting: Installs easily on the front of standard 19-inch server racks and enclosures.
• Multiple Voltage Options: Available in 115VAC or 230VAC models for global compatibility.
• Easy Installation: Simple mounting and wiring for quick setup.
• Durable Construction: Built with high-quality materials for long-lasting performance.
• Versatile Applications: Ideal for cooling servers, network equipment, and other electronics in data centers and industrial environments.

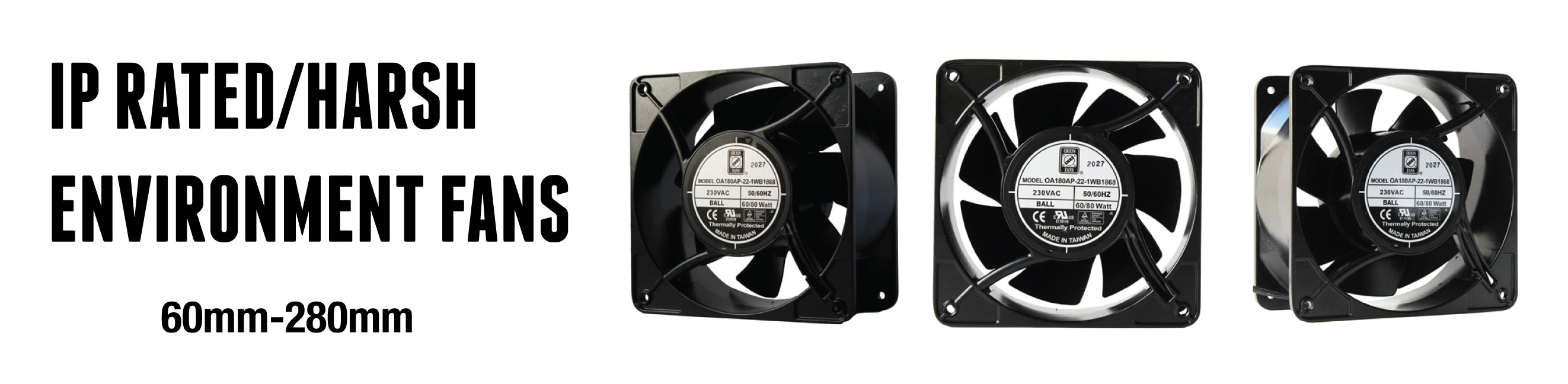

IP RATED/HARSH ENVIRONMENT FANS

Orion Fans harsh environment fans are built tough, designed to withstand moisture, contaminants, extreme temperatures, and corrosive compounds. We offer various IP ratings for different levels of protection:

• IP55: Occasional exposure to solids and liquids.
• IP56: Dust protection and strong water jets.
• IP68: Full dust and moisture protection, submersible up to 3 meters.
• IP69K: High-temperature and high-pressure washdowns.
